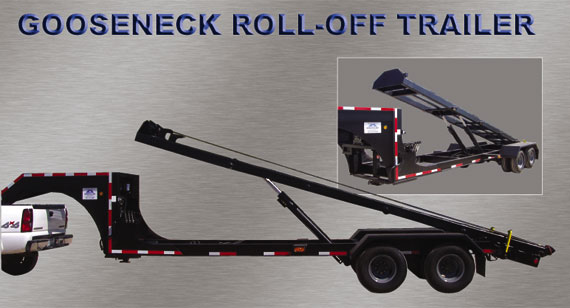

Model shown is GN-20 Gooseneck Roll-off trailer which has a 20,000 lb. load capacity.
Also available GN-30 with 26,000 lb. and GN-40 with 32,000 lb. capacities.

See the GN-20 Video
(10MB File Download Time Varies)




Item GN-20 Specification GN-30 GN-40
Structure Carbon Steel, Fully Welded
Dimensions
33 ft. L 7.9 ft. W 6.33 ft. H

Container Roller Supports
5 - Solid Steel Roller Supports with Internal brass Bushing, Driven by 2" Solid Steel Pinion Extending the Width of Trailer

Hydraulic System
12 gpm @ 2000 psi

Control System
3 - Way, 3 - Control Valve Manifold

Power Unit
15 hp. Single Cylinder Diesel Motor with Safety Switches
15 hp. Single Cylinder 20 hp. Double Cylinder
Axles
2 - 10,000 lbs Heavy Duty Dully With Disc Brakes
2 - 12,000 lbs 2 - 15,000 lbs
Suspension
Tandem Heavy Duty 15,000 lbs.
 24,000 lbs 32,000 lbs
Brake System
Electric Over Hydraulic, Self - Charging with Safety Brake Away

Lift System
2 - 4" Bore Hydraulic Cylinders, Double Acting
2 - 5" 2 - 5"
Pull System
12,000 lbs. Line Pull, Direct Planetary Hydraulic Winch
12,000 lbs. 20,000 lbs.
Container Locks
Hydraulic Actuated Heavy Duty Security Lock Downs

Wheels
8 - D/W 16 x 6 x 865 - 3,000 lbs. (8 studs)
16 - 8 17.5 - 10
Safety Equipment
DOT Reflectors, DOT Bumper, Security Trailer Chains, Brake-Away Brake System, Container Hydraulic Locks, Bullnose Rollers Security Locks

Options Inverted 5th Wheel and Pintle Hook

* Trailer is painted black unless otherwise specified
* Approximate trailer weight is 7,100 lbs.
 7,500 lbs. 7,600 lbs.
