Item
Specification
Structure Carbon Steel with All Inside Seams Fully Welded
Walls
11 G to 1/4"
Front Wall
3/16" A-36
Wall Supports
Formed Channels
Floor
3/16" to 5/16" plate with 3" 4.1 Channel at 16" Intervals or 12" Intervals
Bottom Rails
6 x 2 x 3'16" to 3/8"
Door Sheet
11 G to 1/4"
Door Frame
3" x 3/16" sq. tubing with 45 degree corners
Roof Options
10 G Plate Roof with Tubing Sub-Frame, Sliding Over and Under, Side Hinge, Side Sliding, All Available in Water Tight
Other Options
Tarp
Liquid Tight Available

Door Seal - T-Extruded Neoprene Gasket with 6 Point Chain System with Optional Mechanical Latching System
Testing - Containers Tested to Maximum Capacity

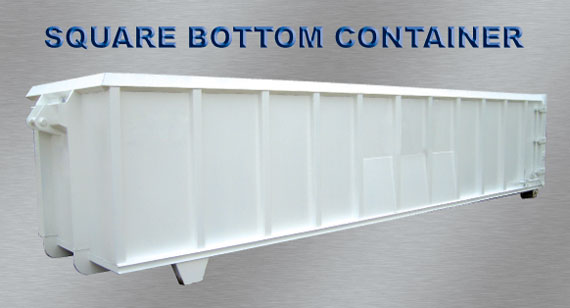

Click Here to download printable Square Bottom specifications
